DOOR HANDLES
By default Rever, Univer and Proget doors include safety levers coupled with long backplates with cylinder holes. Each handle set includes a patent key insert, a 9 x 9 square spindle, fastener screws and spacers.
M1 handles are fire rated consisting of a metal core inside the lever and a galvanized steel cover plate to protect the cylinder hole.
The M1 handles have been certified in accordance with DIN 18273:1997-12.
M1 HANDLE
Fire rated Univer and Proget doors are equipped by default with M1-type handles.
The M1 handle package includes: a pair of black nylon lever with metal cores and galvanized steel installation
plates, a pair of black nylon backplates with patent-type cylinder hole adaptable for installment of Euro profile cylinders, a 125 mm long 9 x 9 square spindle, fastener screws and spacers. The package includes also the hexagonal key
for setting of the hinges and fastening of the spring screw.
Version | description | functioning | use |
---|---|---|---|
handle/handle combination with cylinder hole on both sides. To be combined with locks with an inter-axis distance of 72 mm (015) | door opening by handle or key from both sides | applications in which both door opening directions are accessible without key |
M1R HANDLE
The multi-purpose Univer and Proget doors are equipped with M1R-type handles.
The M1R handle package includes: a pair of black nylon lever handles, a pair of black nylon backplates with patent-
type cylinder holes adaptable for installment of Euro profile cylinders, a 125 mm long 9 x 9 square spindle, fastener
screws and spacers.
M1.R NYLON 6 Handle
Version | description | functioning | use |
---|---|---|---|
handle/handle combination with cylinder hole on both sides. To be combined with locks with an inter-axis distance of 72 mm (015) | door opening by handle or key from both sides | applications in which both door opening directions are accessible without key |
Handles are considered to be accessories and are not pre-assembled.
Cylinders need to be ordered separately (except for Secur handles).
SPECIAL HANDLES
Rever, Univer and Proget doors may be equipped on request with handles with special functions other than those provided by standard handles.
Version | description | functioning | use |
---|---|---|---|
handle/ doorknob combination with cylinder hole on both sides. To be combined with locks with an inter-axis distance of 72 mm (015) | the doorknob side requires the key for opening | applications in which only one of the door opening directions is accessible with a key | |
doorknob/ doorknob combination with cylinder hole on both sides For combination with locks with an inter-axis distance of 72 mm (015) | both sides require the key for opening. The doorknobs serve for pushing or pulling the door | applications in which both door opening directions are accessible by key only | |
plate/plate combination with cylinder hole on both sides. For combination with locks with an inter-axis distance of 72 mm (015) | both sides require the key for opening | applications in technical rooms with doors that usually remain closed and require keys for opening | |
doorknob/plate combination with cylinder hole on both sides. For combination with locks with an inter-axis distance of 72 mm (015) | both sides require the key for opening The doorknob serves for pulling the door | applications in which both door opening directions are accessible by key only | |
handle/ handle combination without cylinder hole. For combination with locks with an inter-axis distance of 72 mm (015) | opening is possible at any time using the handle | applications in which the door never needs to be locked | |
handle/handle and doorknob combination for interior closure. For combination with locks with star-shaped spindles only (Stel 15) | closure using thumbturn latch from inside. Emergency opening from outside with screwdriver | typical closure for bathroom doors |
Models M2, M4, M5, M9 and M20 cannot be combined with the three-point locking mechanism.
Handles are considered to be accessories and assembly is required.
Cylinders need to be ordered separately.

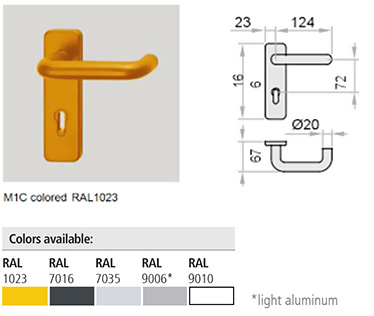

COLORED DOOR HANDLES
On request, painted resin handles can be provided which match or provide better contrast with the base color of the door.
M1C and M2C handles are fire rated like the M1 handle, and have also been certified in accordance with DIN 18273:1997-12.
The M1C and M2C handles package consist of: one pair of lever handles (M1C) or the handle/ doorknob combination (M2C) made of polypropylene (PP) with a metal core and galvanized steel installation plate, a pair of polypropylene (PP) backplates with a Euro profile cylinder hole, a 125 mm long 9 x 9 square spindle, fastener screws and spacers.
Version | description | functioning | use |
---|---|---|---|
handle/handle combination with cylinder hole on both sides. For combination with locks with an inter-axis distance of 72 mm (015) | door opening by handle or key from both sides | applications in which both door opening directions are accessible without a key | |
handle/doorknob combination with cylinder hole on both sides. For combination with locks with an inter-axis distance of 72 mm (015) | the doorknob side requires the key for opening | applications in which only one of the door opening directions works with a key |

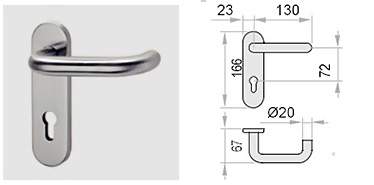

STAINLESS STEEL DOOR HANDLES
On request, satin-finished stainless steel AISI 304 levers and backplates can be provided which endow the product with a higher quality while at the same time ensuring optimal corrosion resistance and a noteworthy robustness of the entire set.
In addition, M1X, M11X and M2X handles are equipped with a return spring that maintains perfect alignment with the geometry of the door.
They are mounted on a galvanized steel mechanism and are supplied with a 125 mm long 9 x 9 square spindle, fastener screws and spacers.
Version | description | functioning | use |
---|---|---|---|
handle/handle combination with cylinder hole on both sides. For combination with locks with an inter-axis distance of 72 mm (015) | door opening by handle or key from both sides | applications in which both door opening directions are accessible without a key | |
handle/doorknob combination with cylinder hole on both sides. For combination with locks with an inter-axis distance of 72 mm (015) | the doorknob side requires the key for opening | applications in which only one of the door opening directions works with a key |
The M2C and M2X models are not combinable with the 3 point locking mechanism. Handles are considered as accessories and require assembly.
Cylinders need to be ordered separately.
