UNIVER – Firedoors

WHAT MAKES THEM SPECIAL?

“Quality first”

• Fully galvanized door, including the “hidden” parts Made of “Sendzimir” processed hot-galvanized sheet metal
• Corrosion protection also provided along cut edges of the metal sheets
• Painted with epoxy-polyester thermoset powders in a 180 degrees (Celsius) oven
• Substantial paint layer (70 microns plus)
• Optimal corrosion resistance demonstrated by 500 hour salt-fog test
• Unaffected by severe climate changes, demonstrated by 2000 hours with +60° to -10° cycles at 75% humidity
• Finishing with high-quality aesthetics
• Orange skin anti-scratch structured paint
• Customizable with wide selection of RAL colors

“Practicality of use”

• Door reversibility*
• Indication of door opening direction not necessary
• Reduction of stock for retailers
• Simplifies choices for end customers
• Multiple installation methods for each door
• Type approvals for anchors for mortar fixing or expansion screws

“Conformity to standards”

• In-house Ninz R&D with specialized testing equipment
• Fire testing in accordance with UNI 9723 and EN 1634-1
• Mechanical testing for the CE marking of accessories
• CE-marked door accessories studied and sized to meet standard European requirements
• Careful selection of materials and manufacturing methods
• Strict product testing for conformity to declared technical standards
• Absolute functional certainty over time
• Doors “type approved” in compliance with M.D. 21 June 2004
• Products delivered with the documentation required by current regulations

“Manufacturing technology”

• Manufacturing in modern and functional facilities which employ the latest technologies to maintain high quality levels and product uniformity
• The entire production process – from raw materials to painted and packaged products – takes place inside Ninz’s own facilities, ensuring a 360 degree door control

One-leaved doors available in the following classes:

Two-leaved doors available in the following classes:
*except in combination with certain optional accessories
NOTE: The colors represented in the photos are not standard.

STANDARD ELEMENTS FOR VERSIONS EI₂30 – EI₂60, EI₂90 – REI 60 – REI 120

which comprise Univer fire doors:

Door leaf

• Made of “Sendzimir” processed hot-galvanized sheet metal, press folded and electro welded
• Perimetral rebate on 4 sides
• Internally reinforced with hot-galvanized steel profiles
• Heat-insulated with treated mineral wool
• Internal stiffeners for overhead door closer and panic bar
• 50 or 60 mm thickness, depending on fire rating

Doorframe

• Made of “Sendzimir” processed hot-galvanized sheet metal
• Grooves for thermo expansive sealing and rebate sealing
• Suitable for anchors for mortar fixing or expansion screws
• Detachable rebate for application on finished flooring
• Removable threshold for thresholdless installation
• Strike plates in PA6 black nylon for lock bolt and safety bolts
• Assembled doorframes for one-leaved doors
• Assembly required for two-leaved doorframes

Thermo expansive sealing

• Mounted on vertical doorframe profiles and central vertical profiles on two-leaved doors
• For on-site mounting on the doorframe’s upper cross-beam
• Mounted above and below the EI290 and REI 120 leaves

Hinges

• Nr. 2 three-wing hinges for each leaf
• of which one ball-bearing hinge with screws for vertical adjustment of the leaf, marked as per EN 1935, classified for up to 160 kg load, 200.000 cycles durability, suitable for fire door use and one hinge with self-closing spring

Safety bolts

• Nr. 2 safety bolts on hinge side leaf edge

Locking mechanism

• Reversible locking mechanism with bolt and central lock
• CE marked in conformity with EN 12209 standard
• Insert with patent key, Euro profile cylinder ready

Handle

• Fire rated handle in black PA6 nylon with steel core
• Steel installation plate with cylinder hole
• Backplate in black PA6 nylon
• Fastener screws and patent key insert

NOTE: Cylinder and rebate sealing provided on request only. The handle requires assembly.

INCLUDED ACCESSORIES

which are part of the Univer fire doors:

Closing regulator

• Two-leaved doors include an RC/STD closing regulator to ensure the correct closing sequence of the leaves
• CE marking in conformity with EN 1158 standard

Locking mechanism for secondary leaf

• “Flush-bolt” automatic locking of the secondary leaf
• Lever control for unlocking

Upper coupling system for the secondary leaf

• Secondary leaf lock activated device which inserts rod into the upper strike box
• Upper strike box in black PA6 nylon with steel roller

Lower coupling system for the secondary leaf

• Vertical rod with steel point which inserts into lower strike box
• Floor catch (floor-mounted floor catch) made of selfextinguishing black nylon, for doors without threshold
• Floor catch in self-extinguishing black nylon with a steel roller, for doors with threshold

Identification plate

• Metal tag with door identification data, in accordance with current regulations

Standard paint – group 01:

Leaf color NCS 4020-B50G Frame color NCS 5020-B50G

Finishing

• Standard painted with epoxy-polyester thermoset powders in a 180 degrees oven, orange skin, anti-scratch
  finishing
• Standard pastel turquoise color, lighter tone for the leaf (NCS4020-B50G), darker tone for the frame (NCS5020-B50G)

Standard packaging

• Single door wrapped into stretchable polyethylene (PE) film
• Assembled doorframes for one-leaved doors
• Assembly required for doorframes for two-leaved doors
• Palletized on wooden pallets

Door weight		kg/m2 of wall opening
class	1 leaf	2 leaves
EI230	30	-
EI260	36	35
REI 60	34	33
EI290, REI 120	43	41

NOTE: If the door ever needs to be repainted, follow the precise instructions on the „painting“ page. The closing regulator requires assembly.

OPTIONAL ACCESORIES

A wide variety of accessories and surface fi nishes are available on request for maximum value enhancement of Univer firedoors to your own specific needs.

The proper accessories can help resolve:

Safety-related needs

• Doors for panic exits (see panic bars)
• Doors for emergency exits (see emergency exit handles)
• Open doors which must be closed in case of fire (see leaf holding systems)

Installation and utilization needs

• Frame extensions
• Drip steel-profile
• Special fastener screws
• Kick and protection plates
• Windows

Access-related control issues

• Electrically-activated lock mechanisms
• Electric handle mechanisms
• Magnetic blocking mechanisms

Performance enhancing

• Sealing
• Cylinders
• Door closers
• Special closing regulators
• Special handles

NOTE: Details on the optional accessories may be found in the following chapters of this website:

• Finishing
• Accessories for metal doors
• Panic bars

Right-opening doors are the default selection if opening direction is
not specified.

Customized finishing

• Select paint colors from a wide variety of RAL tints
• NDD – Ninz Digital Decor, graphic images applied with special ink jets and protected by a transparent topcoat. Infinite varieties of customizable decorations in harmony with specific door settings
• Stainless steel handles
• Colored handles

Packaging for maximum protection

Sturdy wooden crates protect all doors and related accessories

• NDD decorated doors
• Construction sites
• Shipping abroad
• Special transport

The following optional accessories make Univer doors irreversible, requiring the indication of the door opening direction when the order is placed:

• SLASH panic bar
• Panic bar for secondary leaves
• Windows
• MAC lock
• ELM/cisa and ELM/mt electric handle
• Special locks (016 tir- Stel 15)

WINDOW WITH FIRE RATED GLASS

Upon request all one- and two-leaved fire doors, excluding those EI230 rated, may be equipped with round or rectangular windows with fire rated stratified glass and window frames. Windows not possible for one-leaved REI doors with FM L (wall opening) above 1167mm.

Limits prescribed by standard

According to standards UNI 9723 and EN 1634-1, windows may be smaller but not larger than the test sample size, and the reverse holds true for the border strip around the window which may be wider but not thinner. The following limits correspond with these restrictions.

Borders, window position

“Border measurement” refers to the distance from the edge of the window to the wall opening of the door.

NOTE:
The positions indicated above are standard. Different positions may be considered as long as they respect the minimum “a” and “b” border strips. The window itself may not be supplied separately except for replacements. It is always advisable for doors with windows to be equipped with door closers for controlled closing.

ATTENTION!
REI windows become opaque on exposure to temperatures of 40 degrees or higher, or when installed outside and exposed to UV radiation. Minor aesthetic imperfections or tiny air bubbles do not compromise the fire resistance of the glass, and do not constitute grounds for claims. For special instructions and recommendations for fire windows, see the “Notices” reported on the last page of the window accessories section of the present brochure.

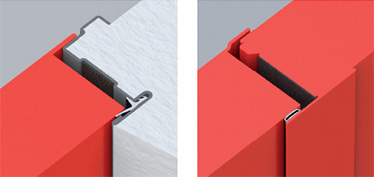

FRAME EXTENSIONS FOR UNIVER DOORS

IM 11 – IM 12

Frame extensions to be mounted in addition to the Univer frame acting as a wall cladding. Made of “Sendzimir” processed hot-galvanized sheet metal and painted the same color as the doorframe with epoxy-polyester powders. Profile on three sides, upper corners with 45 degree joint, fixing with screws and plugs (screws and plugs not included).

IM 11: for 50mm door thickness, for installation on 70mm (min.) wall thickness

IM 12: for 60mm door thickness, for installation on 80mm (min.) wall thickness

IM 13 – IM 14

Telescopic frame extension to be screwed to the Univer doorframe acting as a wall cladding. Consists of two overlapping profiles with a 25mm adjustable range. Made of “Sendzimir” processed hot-galvanized sheet metal painted the same color as the doorframe with epoxy-polyester powders. Profile on three sides, upper corners with 90 degree joint. Complete with fastener screws. To mount the frame extension, fixing holes need to be drilled into doorframe on site. Combine with sealing to conceal the screw heads.

IM 13: for 50mm door thickness, for installation on 125mm (min.) wall thickness

IM 14: for 60mm door thickness, for installation on 135mm (min.) wall thickness



REBATE SEALING

FF/CR sealing (for EI2 doors) and FF sealing (for REI doors) in black extruded profile to be pressed into the dedicated groove in the perimetral frame.

FF sealing in black extruded profile self-adhesive for application to the central joint of two-leaved doors.

NOTE: Upon request sealing supplied for single doors to be cut and mounted on site.

Door cross sections – Measurements

One-leaved doors
Horizontal cross section

Doors with internal and external lower thresholds
Vertical cross section

Doors without lower threshold
Vertical cross section

Doors with internal lower threshold
Vertical cross section

Thicknesses
class	leaves	doorframe
EW 60, EI230, RE 90, REI 60	50 mm	s = 55 mm
EI260, EI290, REI 120	60 mm	s = 65 mm

NOTE:
The tolerances FM L +10/+20, FM H +5/+15 of the indicated measurements make it easier to fill the gap between the wall and the doorframe with cement mortar.
(*) Shimming to be done, mandatory in case of installation onto emergency exit routes.
(**) Only for EI290 fire rated doors

Installation methods

Installation with anchors for mortar fixing

For mortar fixing, appropriate cuts will need to be created in the walls (section 80 x 200 mm). The anchors should be bent and blocked inside the wall. For fire sealing purposes and a perfect mechanical fit, the space between the doorframe and the masonry shall always be filled with concrete mortar.

Installation for expansion screws fixing

For the installation with expansion screws, the anchors serve as spacers and should not be bent. Using Würth type art. 0910436112 plugs or similar (supplied at the customer‘s expense), installation requires holes to be drilled through the thermo expansive sealing. The doorframe has pre-drilled holes. For fire sealing purposes and a perfect mechanical fit, the space between the doorframe and the masonry shall always be filled with concrete mortar.

Anchor positioning

One-leaved doors
Right opening Left opening

Two-leaved doors
Right opening

Left opening

Note:
Proper installation requires 80 x 200 mm holes to be dug into the masonry.

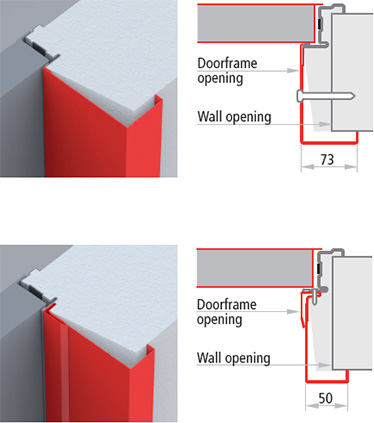

Order measurements

Wall opening

Doorframe opening

One-leaved doorsPT L = FM L – 74 PT H = FM H – 40Two-leaved doors PT L = FM L – 80 PT H = FM H – 40

Opening measurements – Overall dimensions

OPENING MEASUREMENTS AND OVERALL DIMENSIONS WITH 90 DEGREE OPENING

One-leaved doors with panic bar

Two-leaved doors with panic bars

OVERALL DIMENSIONS WITH 180 DEGREE OPENING – HANDLE HEIGHT

One-leaved doors
x = FML + 5
h handle = FMH/2 + 50

Two-leaved doors
x = L1 + 5 and y = L2 + 35
h handle = FMH/2 + 50
b = 130 (only in the presence of panic bars or M14 handles)
